※3.0S以上はヨーク付
(4.5S以上はお問い合せ下さい。)

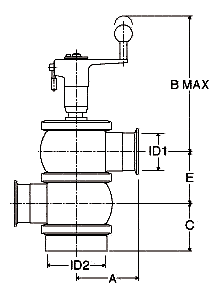

| Nom.size |
ID1 |
ID2 |
A |
B MAX |
C |
E |
Mass kg |
ヘルール
ネジ |
| 1.0S |
23 |
47.8 |
55 |
161 |
49 |
48 |
2.2 |
| 1.5S |
35.7 |
59.5 |
70 |
175.5 |
55.5 |
61 |
3.0 |
| 2.0S |
47.8 |
85.1 |
82 |
229 |
68 |
76 |
6.0 |
| 2.5S |
59.5 |
97.6 |
105 |
243 |
74 |
88 |
7.9 |
| 3.0S |
72.3 |
108.3 |
110 |
253 |
85 |
100 |
11.4 |
| 3.5S |
85.1 |
133.8 |
125 |
259.5 |
91.5 |
113 |
14.8 |
| 4.0S |
97.6 |
159.2 |
155 |
450 |
114 |
138 |
27.7 |
|
