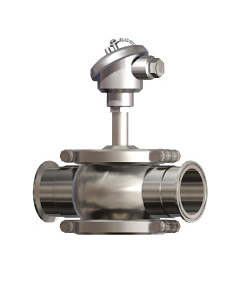

In-line Sheath Resistance Thermometer Bulbs 【Type TIS】


  この製品の参考資料


※With Sight Glass

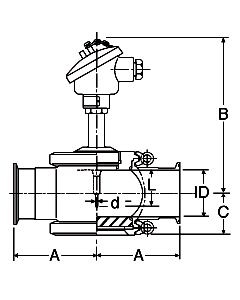

Nom.size ID A B C Protecting tube d L Mass kg
Ferrule
Screw
1.0S 23 55 162 32 φ3.2 20 1.8
1.5S 35.7 70 168 39 φ3.2 32 2.3
2.0S 47.8 82 189 47 φ3.2 45 3.6
2.5S 59.5 105 195 53 φ3.2 45 4.8
3.0S 72.3 110 202 59 φ4.8 70 5.7
3.5S 85.1 125 208 66 φ4.8 70 7.2
4.0S 97.6 155 224 83 φ6.4 90 13.1
