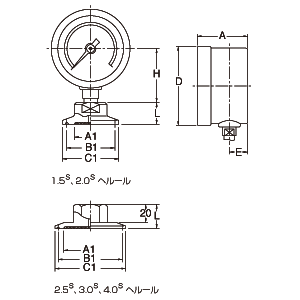

Pressure Gauge Diaphragm　【Type PGD-I】

Here for heat radiation fin type.

Ferrule
Nom.size	A1	B1	C1	L
1.5^S	35	43.5	50.5	22
2.0^S	47	56.5	64	22
2.5^S	58	70.5	77.5	26.5
3.0^S	70	83.5	91	26.5
4.0^S	100	110	119	28

Meter
size	A	D	E	H
φ75	47	83	17	61
φ100	50	107	18	76
