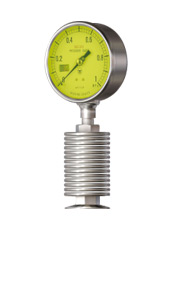

Pressure Gauge Diaphragm　with fin　【Type PGDI-F】


  この製品の参考資料

Here for no heat radiation fin type.


※Number of fins (Fin：7/Long Fin：14/φ60long Fin：14/)

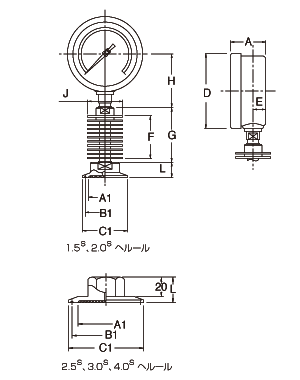

Ferrule
Nom.size A1 B1 C1 L
1.5S 35 43.5 50.5 22
2.0S 47 56.5 64 22
2.5S 58 70.5 77.5 26.5
3.0S 70 83.5 91 26.5
4.0S 100 110 119 28

Meter
size A D E H
φ75 47 83 17 61
φ100 50 107 18 76

Fin
size J F G
Long 50 61 78
